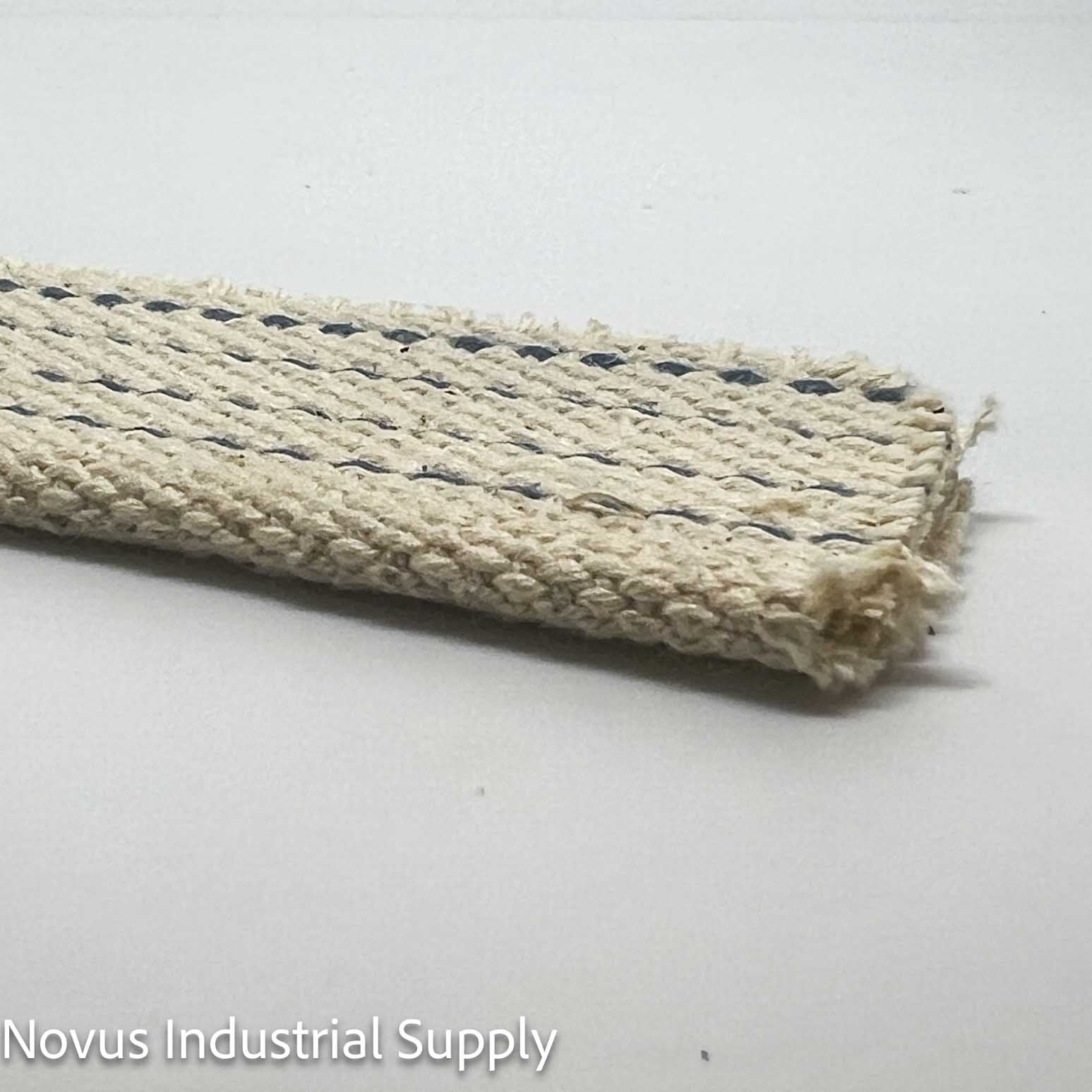

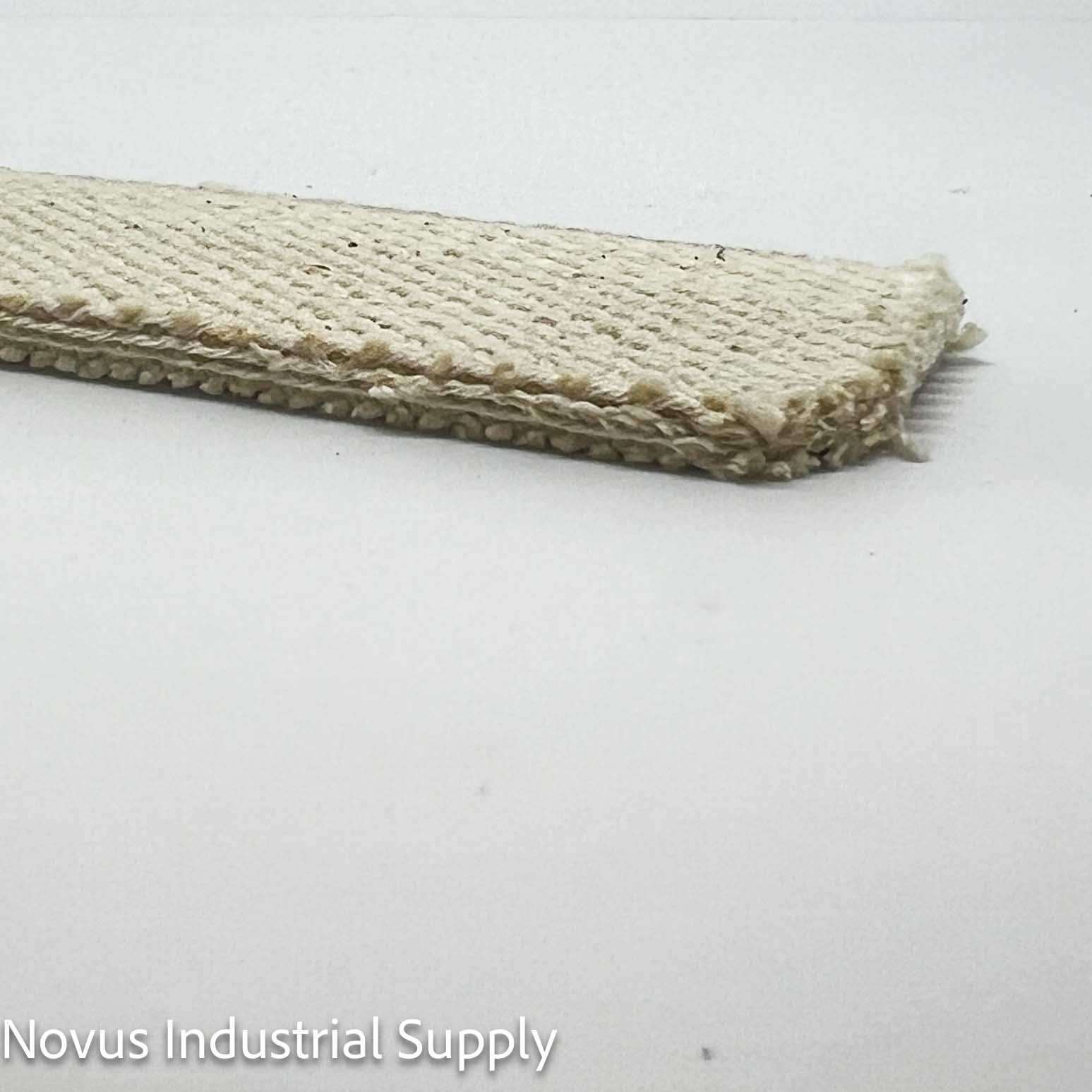

BS16-4 - #16-4 Beltservice 4 Ply Solid Woven Cotton

A popular conveyor belting, particularly in the food and baking industries. Economical answer to many light and medium conveying needs, especially slider bed applications.

The belt is firmly woven; non-rubberized.

Number of stripes usually indicates the number of plies.

Also can be used as an air-permeable fabric designed for pneumatic conveyors.

Industries:

Agriculture

Bottling/Filling

Carton, Paper, Packaging Materials

Cement

Food (FDA)

Printing & Paper

Waste & Recycling

Textile

Belt Specs:

Thickness = 3/16”

Temp Range = -40 degrees to 225 degrees Fahrenheit

Min Pulley Diameter = 3”

Weight (PIW) = .0560 lbs

Recommended Lacing:

Alligator Staple:

Clipper Lace: #3

Alligator Lace: #20
